Features:
- Small dimensions
- Mechanical life: min. 3x 10
 cycles
- Good feeling.

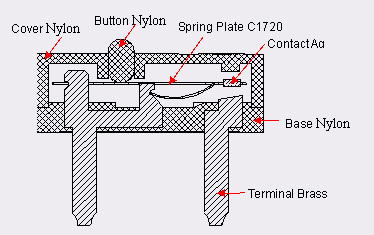

Materianls
Switch Cover: Nylon
Color: Black
Switch Base: Nylon
Color: Black
Actuating Button: Nylon
Color: Black
Terminals: Brass (Plating silver)
Spring Plate: C1720
Contact: Ag
Specifications
Contact Rating: 0.1A @ 48VDC; 0.1A @125VAC
Electrical life: 3,000,000 cycles
Mechanical life : 3,000,000 cycles min
Insulation Resistance: > 100M Ω DC250V
Withstand Voltage: AC250V 1 minute
Contact Resistance: < 300m Ω
Ambient Temper.: -25 °C to 85 °C
Operating Force: 70 ± 20gf.
Soldering Process: Hand soldering: Use a soldering iron of 30 watts, controlled at 380 °C approximately 3 seconds while applying solder.
Wave soldering: When applying wave soldering, the peak temperature of the wave Oven should be set to 260 °C max. Condition for soldering (Wave & Non-washable Type) Temperature Profile: (Figure 1)

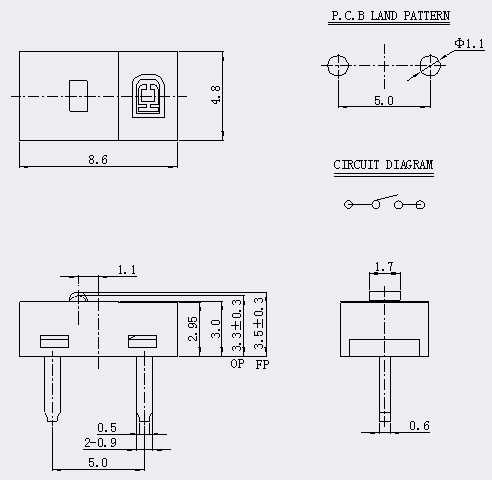

Dimension Drawing (mm)
Packing Explanation:
24,000 PCS for one big box (1,000 PCS for one bag, 4 bags for one small box, 6 small boxes for one big box.) |
