• A miniaturized push button witch (5.8x5.8x10mm)
• The double sliding contact structures high reliability

SPECIFICATION

Mechanical life: 100,000 cycles min
Electrical life: 10,000 cycles min
Contact Rating: 0.1Amps @30 VDC
Insulation Resistance: >100MΩ DC125V
Withstand Voltage: AC125V 1 minute
Contact Resistance: <100mΩ
Ambient Humidity: <85%RH
Operating Temper.: -25°C to 65°C
Operating Force: 160±80gf
Soldering process: Hand Soldering: Use a soldering iron of 30 watts, controlled at 380°C approximately 3 seconds while applying solder

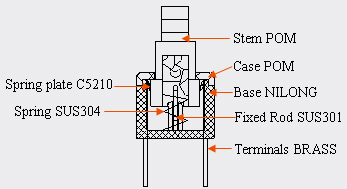

MATERIALS

Case: POM
Base: NILONG (UL94 V-0)
Stem: POM
Terminals: Brass(Plating silver)
Spring plate: C5210
Spring: SUS304
Fixed Rod: SUS304

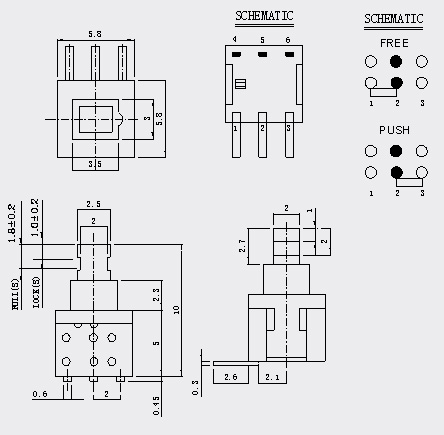

DIMENSION DRAWING (mm)

PACKING EXPLANATION :

30,000 PCS for one big box (1,000 PCS for one bag, 5 bags for one small carton,6small cartons for one big box.)
