FEATURES:
- Small dimensions
- Good feeling
SPECIFICATION
Mechanical life: 10,000 cycles min
Electrical life: 10,000 cycles min
Contact Rating: 30 VDC 2A/1A/0.3A
Insulation Resistance: >100MΩ DC250V
Withstand Voltage: AC250V 1 minute
Contact Resistance: <50mΩ
Ambient Humidity: <85%RH
Operating Temper.: -25°C to 65°C
Operating Force: 250±100 gf E TYPE ; 300±100 gf (A TYPE, B TYPE, C TYPE, D TYPE)
Soldering process: Hand Soldering: Use a soldering iron of 30 watts, controlled at 380°C approximately 3 seconds while applying solder
Wave soldering: When applying wave soldering, the plastic using PA6T. the peak temperature of the wave Oven should be set to 260°Cmax. Condition for soldering (Reflow & Non-washable Type) Temperature Profile (Figure 1):
![](/rimages/681/PS908-series.jpg)
MATERIALS
![](/rimages/681/PS908-series-1.jpg)
Stem: High Temperature NYLONG (UL94 V-0)
Cover: SPCC (Plating Nickel)
Fixed Rod: SUS304
Spring plate: C5210
Ring: SPCC (Plating Nickel)
Spring: sus304
Terminal: C2680
Base: Bakelite
Clip: C5210

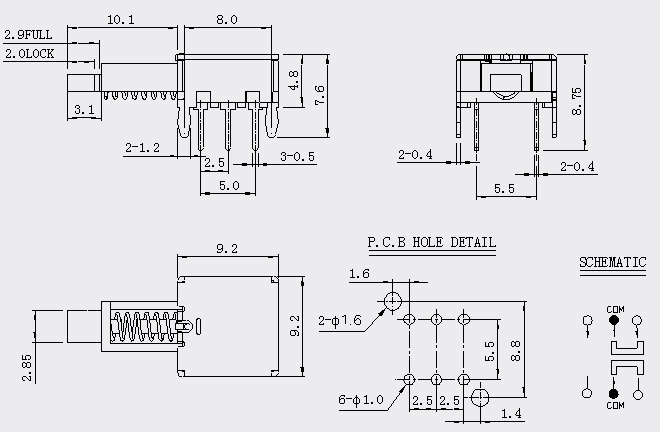

TERMINAL AND COVER OPTIONS :
![](/rimages/681/PS908E1L-22-03-1.jpg)
|
