FEATURES:
- A miniaturized push button switch
- The double sliding contact structures high reliability
- Circuit: 2P2T, 4P2T, 6P2T types are applied
SPECIFICATION
Mechanical life: 30,000 cycles min
Electrical life: 10,000 cycles min
Contact Rating: 0.1Amps @30 VDC
Insulation Resistance: >100MΩ DC250V
Withstand Voltage: AC250V 1 minute
Contact Resistance: <100mΩ
Ambient Humidity: <85%RH
Operating Temper.: -20°C to 70°C
Operating Force: 2 Pole:230±50gf; 4 Pole:280±50gf; 6 Pole:380±50gf
Soldering process: Hand SolderingĦGUse a soldering iron of 30 wattsĦAcontrolled at 380°C approximately 3 seconds while applying solder
Wave soldering: When applying reflow soldering, the peak temperature of the reflow Oven should be set to 240°Cmax. On dition for soldering (Reflow & Non-washable Type) Temperature Profile:
MATERIALS
Case: High Temperature PBT or NYLONG (UL94 V-0)
Base: High Temperature NILONG (UL94 V-0)
Stem: High Temperature NYLONG (UL94 V-0) or POM
Sleeve: High Temperature NYLONG (UL94 V-0) or POM
Terminals: Brass(Plating silver)
Ring:SPCC
Spring plate: SUS301
Clip: C5210
Spring: SUS304
Fixed Rod: SUS304

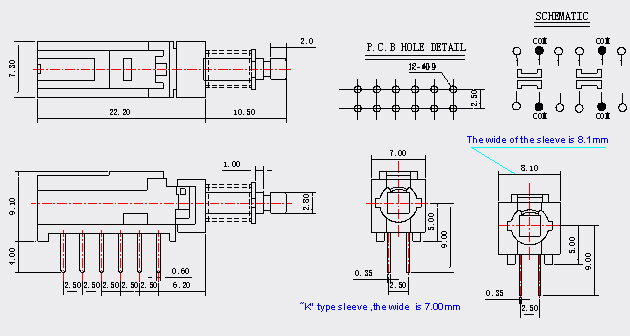

DIMENSION DRAWING
BRACKET OPTION
|
