FEATURES:

• A miniaturized slide switch

SPECIFICATION

Mechanical life: 50,000 cycles min
Electrical life: 50,000 cycles min
Contact Rating: 0.1Amps @12 VDC
Insulation Resistance: > 100M Ω DC250V
Withstand Voltage: AC250V 1 minute
Contact Resistance: < 100m Ω
Ambient Humidity: < 85%RH
Operating Temper.: -25 °C to80 °C
Operating Force: ≤70gf
Soldering process: Hand Soldering: Use a soldering iron of 30 watts, controlled at 380 °C approximately 3 seconds while applying solder.

MATERIALS

Stem: POM
Buckle: SUS301
Spring: SUS304
Base: PBT
Spring plate: Phosphor Bronze
Terminals: Brass

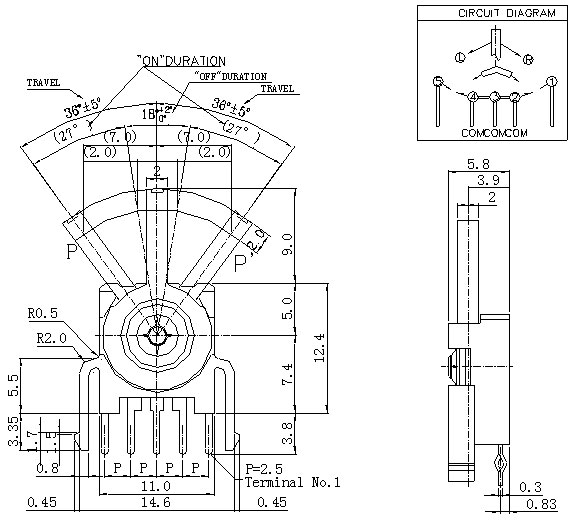

DIMENSION DRAWING

PACKING EXPLANATION :
12,000 PCS for one big box ( 250 PCS for one bag, 2 bags for one small carton,24 small cartons for one big box.)
