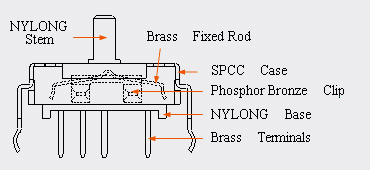

MATERIALS

Stem: High Temperature NYLONG (UL94 V-0)
Clip: Phosphor Bronze
Fixed Rod: Phosphor Bronze
Case: SPCC
Base: High Temperature NYLONG (UL94 V-0)
Terminals: Brass(Plating silver)

SPECIFICATION

Mechanical life: 10,000 cycles min
Electrical life: 10,000 cycles min
Contact Rating: 0.3Amps @30 VDC
Insulation Resistance: >100MΩ DC250V
Withstand Voltage: AC250V 1 minute
Contact Resistance: <100mΩ
Ambient Humidity: <85%RH¡F
Operating Temper.: -25°C to 70°C
Operating Force: 200±100gf
Soldering process: Hand Soldering:Use a soldering iron of 30 watts¡Acontrolled at 380°C approximately 3 seconds while applying solder

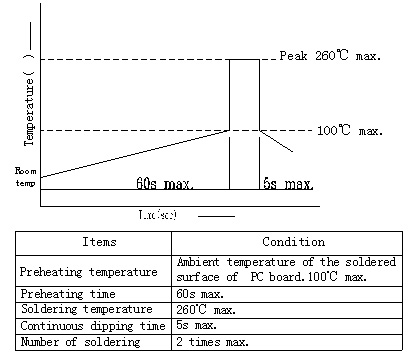

Wave soldering: When applying wave soldering, the peak temperature of the wave Oven should be set to 260°Cmax. Condition for soldering (Wave & Non-washable Type) Temperature Profile:

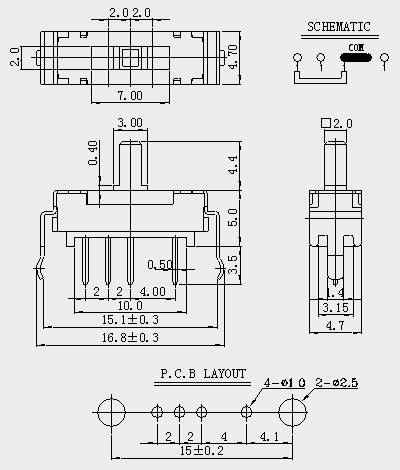

DIMENSION DRAWING

PACKING EXPLANATION :

18,000 PCS for one big box (500 PCS for one bag, 6 bags for one small carton,6small cartons for one big box.)
