Features:

• Protection against ingress of dust ≤ Φ 1.0mm ( I P5X)
• Protection against ingress of water ( I PX1)
• Good feeling and more actuators and more terminals are applied

Materials

Upper Housing: Nylong66 (UL94 V-0)
Base: Nylong66 (UL94 V-0)
Actuating Button: High Temperature PBT (UL94 V-0)
Cap: Rubber (UL94 V-0)
Chang Plate: Bronze
NC, NO, COM Terminals: Brass(Plating silver)
Contacts: Silver Alloy or plating Gold
Spring: SUS304
Auxiliary Actuator: Stainless Steel

Specification

Mechanical life: 100,000 cycles min
Contact Rating: 5Amps @ 250 VAC; CUL, UL 10,000 cycles
Insulation Resistance: >100MΩ DC500V
Withstand Voltage: AC1,000V 1 minute
Contact Resistance: <100mΩ
Operating Temper.: -25°C to 85°C
Operating Force: See Chart
Hand Soldering.: Use a soldering iron of 30 watts, controlled at 380°C approximately 3 seconds while applying solder

Actuator and Operating Force Chart

ACTUATOR	OPERATING FORCE(gf)					FP(mm)	OP(mm)
00 (No Lever)	115±40	130±40	150±40	175±45	250±50	12.5±0.5	11.5±05

Terminal Options mm( Inches)

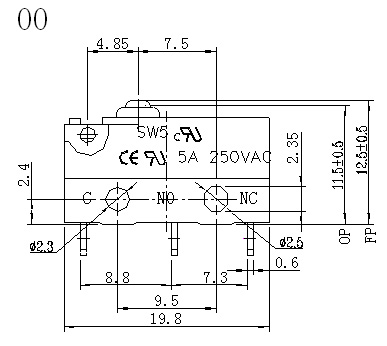

Actuator Specifications (mm)

Packing Explanation:

Hacing different transport and exist differ package:

1. 90 PCS for one case, 78 cases for one box
2. HK: 90 PCS for one case, 78 cases for one box
3. TAIWAN: 90 PCS for one case, 76 cases for one box
