• Small dimensions(6 x6;6.2 x6.2)
• Mechanical life: min. 1 x 10 ⁵ cycles
• Good feeling

SPECIFICATION

Contact Rating: 50 mA @ 12VDC
Electrical life: 100,000 cycles
Mechanical life: 100,000 cycles min
Position Travel : 0.25+0.2/-0.1
Insulation Resistance: >100MΩ DC250V
Withstand Voltage: AC250V 1 minute
Contact Resistance: <100mΩ
Ambient Temper.: -25°C to 70°C
Operating Force: 70±20 gf; 100±40 gf; 130±40 gf; 160±40 gf; 170±50 gf; 250±50 gf. Soldering Process: Hand soldering: Use a soldering iron of 30 watts, controlled at 380°C approximately 3 seconds while applying solder.
Wave soldering: When applying wave soldering, The plastic using PA6T(HTN), the peak temperature of the wave Oven should be set to 260°Cmax. Condition for soldering (Wave & Non-washable Type) Temperature Profile: (Figure 1)
Reflow soldering: When applying reflow soldering, The plastic using PA6T(HTN), the peak temperature of the reflow Oven should be set to 250°Cmax. Condition for soldering (Reflow & Non-washable Type) Temperature Profile: (Figure 2)

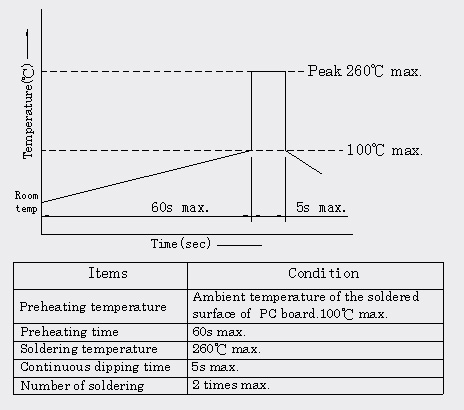

Wave soldering (Figure 1)

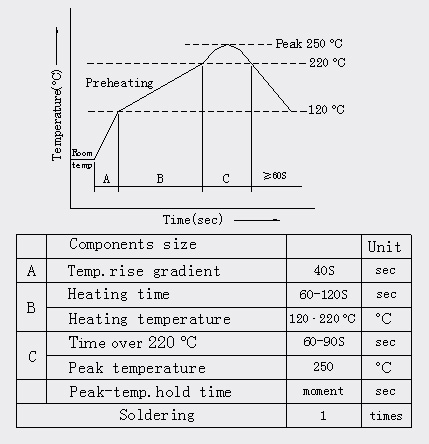

Reflow soldering (Figure 2)

Materials

TERMINAL AND COVER OPTIONS

PACKING EXPLANATION :

30,000 PCS for one big box(1,000 PCS for one bag, 5 bags for one small box,6 small boxes for one big box.)
Taping packaging :1000 switches shall be packed in a reel;Ten(10)reels at maximum shall be packed in a package.
