FEATURES:
- Small dimensions(4.5 x 1.8)
- Mechaanical life: min. 5x 10 4 cycles
- Good feeling
SPECIFICATION
Contact Rating: 50 mA @ 12VDC
Electrical life: 50,000 cycles
Mechaanical life: 50,000 cycles min
Position Travel: 0.2±0.1
Insulation Resistance: >100MΩ DC250V
Withstand Voltage: AC250V 1 minute
Contact Resistance: <100mΩ
Ambient Temper.: -20°C to 70°C
Operating Force: 160±50gf
Soldering Process: Hand soldering: Use a soldering iron of 30 watts,controlled at 380°C approximately 3 seconds while applying solder.

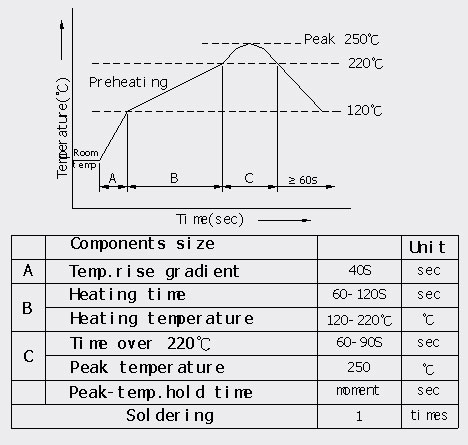

Reflow soldering: When applying reflow soldering, the peak temperature of the reflow Oven should be set to 250°Cmax. Condition for soldering (Reflow & Non-washable Type) Temperature Profile:(Figure 1)
Rellow soldering (Figure 1)

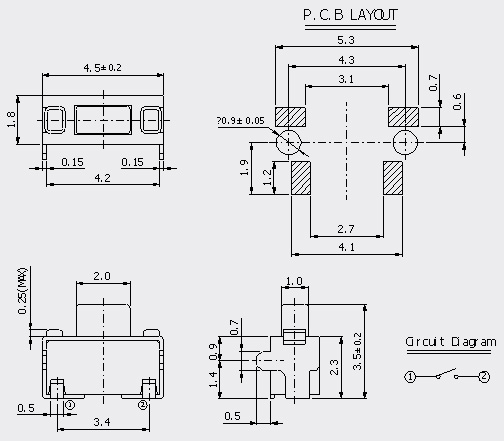

TERMINAL AND COVER OPTIONS
PACKING EXPLANATION :
24,000 PCS for one big box (1,000 PCS for one bag, 4bags for one small carton,6 small cartons for one big box.)
Taping packaging: 3000 switches shall be packed in a reel;Ten(10)reels at maximum shall be packed in a package. |
