• Small dimensions (6.0x3.8mm)
• Mechanical life: min. 5 x 10⁴cycles
• Good feeling

SPECIFICATION

Contact Rating: 50 mA @ 12VDC
Electrical life: see the chart
Mechanical life: see the chart
Insulation Resistance: >100MΩ DC100V
Withstand Voltage: AC250V 1 minute
Contact Resistance: <100mΩ
Ambient Temper.: -25°C to 70°C
Operating Force: 70±30 gf; 100±30 gf; 160±50 gf; 250±60 gf; 260±50 gf
Soldering Process: Hand soldering¡GUse a soldering iron of 30 watts,controlled at 380°C approximately 3 seconds while applying solder.
Wave soldering: When applying wave soldering, the peak temperature of the wave Oven should be set to 260°Cmax. Condition for soldering (Wave & Non-washable Type) Temperature Profile:(Figure 1)
Reflow soldering: When applying reflow soldering, the peak temperature of the reflow Oven should be set to 250°Cmax. Condition for soldering (Reflow & Non-washable Type) Temperature Profile:(Figure 2)

MATERIALS

Switch cover: SUS301
Switch Base: PA6T (UL94 V-0)
Color: Black
Actuating Button: BRASS(Plating CuSn)
Terminals: C5191(Plating silver)
Contact Disc: SUS301
Adhesive Tape: Polyimide

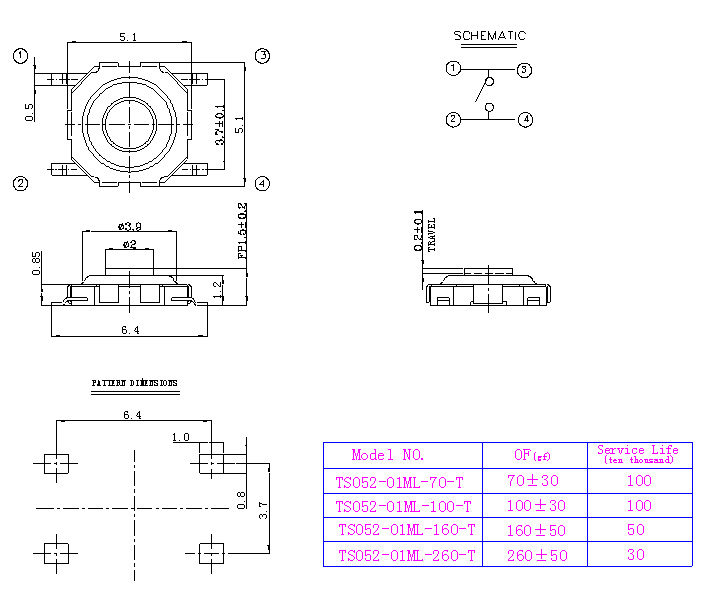

DIMENSION DRAWING

PACKING EXPLANATION :

3000 switches shall be packed in a reel; Ten(10)reels at maximum shall be packed in a package.
