• Small dimensions (6.0 x 6.0)
• Mechanical life: min. 1 x 10 ⁶ cycles
• Good feeling

SPECIFICATION

Contact Rating: 50 mA @ 12VDC
Electrical life: 1,000,000 cycles
Mechaanical life: 1,000,000 cycles min
Position Travel: 0.25±0.1
Insulation Resistance: >100MΩ DC250V
Withstand Voltage: AC250V 1 minute
Contact Resistance: <100mΩ
Ambient Temper.: -25°C to 70°C
Operating Force: 80±20 gf;120±30 gf;180±50 gf
Soldering Process: Hand soldering: Use a soldering iron of 30 watts,controlled at 380°C approximately 3 seconds while applying solder.
Wave soldering: When applying wave soldering, the peak temperature of the wave Oven should be set to 260°Cmax. Condition for soldering (Wave & Non-washable Type) Temperature Profile: (Figure 1)

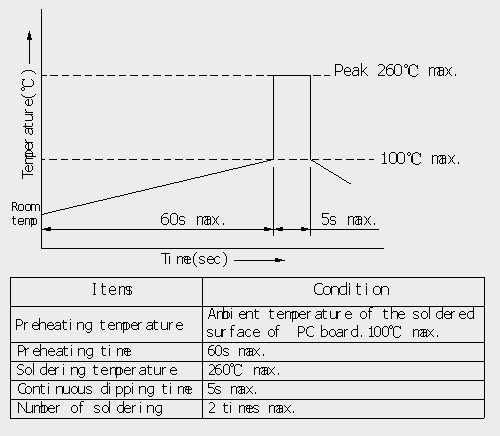

Wave soldering (Figure 1)

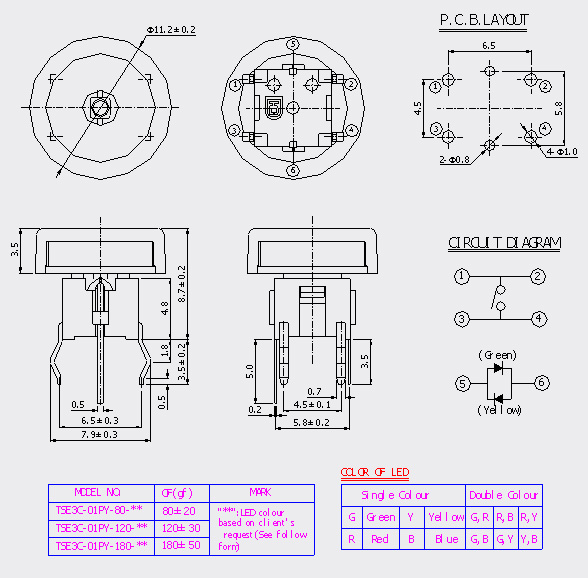

DIMENSION DRAWING

PACKING EXPLANATION :

60,000 PCS for one big box(1,000 PCS for one bag, 10bags for one small carton,6 small cartons for one big box.)
Canal packaging: 55 switches shall be packed in a strip;Ten(10) strips at maximum shall be packed in a bag;20 bags shall be packed in a carton ;ten cartons shall be packed in a big box.
