Features:

• Mechanical life: min.1 x 10 cycles
• Good feeling and more actuators and more terminals are applied

Materials

Upper Housing: High Temperature PBT (UL94 V-0)
Lower Housing: High Temperature PBT (UL94 V-0)
Actuating Button: High Temperature PBT (UL94 V-0)
Fixed Rod: Brass
Chang Plate: Brass(Plating silver)
NC, NO, COM Terminals: Brass(Plating silver)
Contacts: Silver Alloy or plating Gold
Spring Plate: Bronze
Auxiliary Actuator: Stainless Steel

Specification

Mechanical life: 1,000,000 cycles min
Contact Rating: 15 Amps @ 125/250 VAC; CUL, UL 10,000 cycles; VDE 50,000 cycles
10 Amps @ 125 /250VAC ; CUL,UL 10,000 cycles;VDE 50,000 cycles
Insulation Resistance: >100MΩ DC500V
Withstand Voltage: AC1500V 1 minute
Contact Resistance: <100mΩ
Operating Temper.: -25°C to 85°C
Operating Force: See Chart
Hand Soldering.: Use a soldering iron of 30 watts, controlled at 380°C approximately 3 seconds while applying solder

Actuator and Operating Force Chart

ACTUATOR	OPERATING FORCE (gf)			FP(mm)	OP(mm)
04	50±20	85±30	140±40	23.95±1.5	21.75±1.5

Terminal Options mm (Inches)

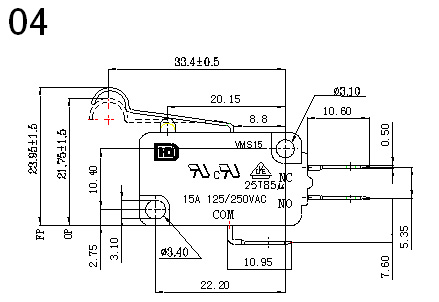

Actuator Specifications (mm)

Packing Explanation:

1. Commonly, 100pcs for one case and 30 cases for one box.
2. Longer lever: Such as the VMS-03 type is packaged 80pcs for one case, 30 cases for one box.)
